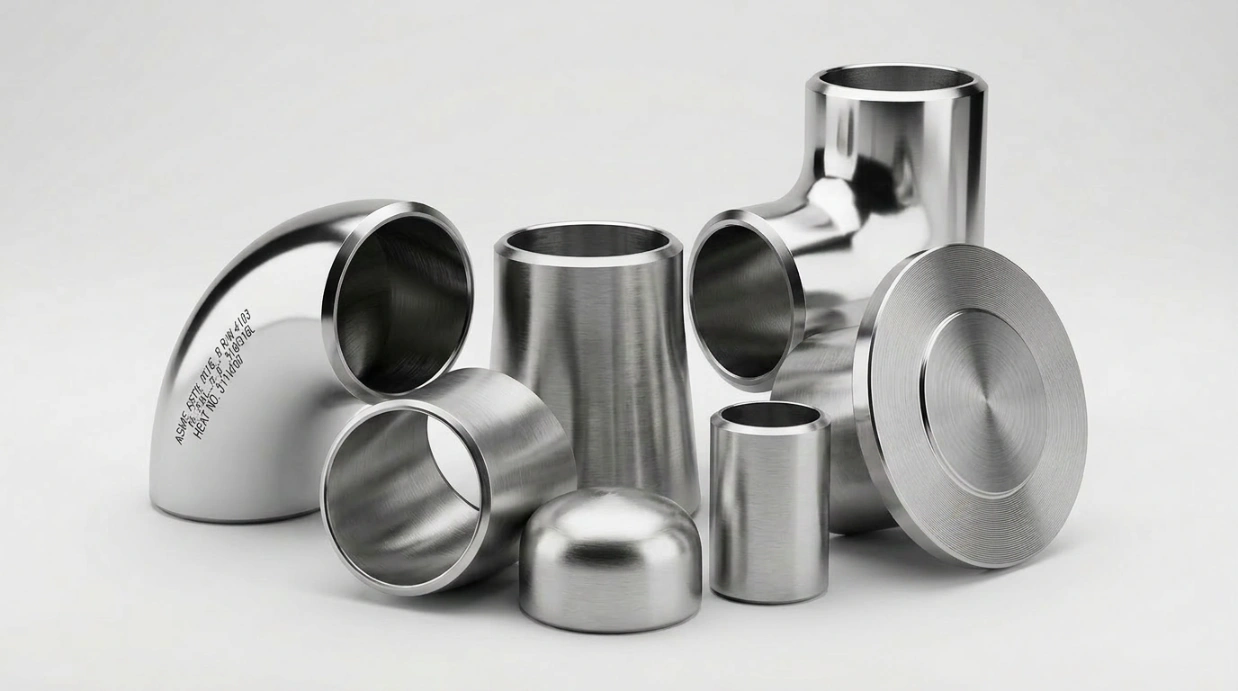

Petrofit Alloys & Engineering LLP is one of the reliable ASTM A403 SS304 / SS304L / SS304H buttweld pipe fittings manufacturers in India, supplying a complete range of elbows, tees, reducers, caps and stub ends for industrial piping systems. With strong manufacturing capability and ready stock, we support EPC contractors, fabricators, OEMs and stockists who require consistent quality and dependable deliveries in SS 304-series stainless steel.
As a specialised producer of SS304 buttweld pipe fittings, SS304L buttweld pipe fittings and SS304H buttweld pipe fittings, we understand the different performance requirements of each grade. Whether your project calls for standard 304 for general service, low-carbon 304L for heavy welding, or high-temperature 304H, Petrofit can supply matched fittings across the full size range with proper certification and traceability.
ASTM A403 covers wrought austenitic stainless steel fittings for pressure and high-temperature service. In the 304 family, it includes the grades 304, 304L and 304H. All three share the familiar 18-8 stainless steel chemistry but with different carbon limits and processing requirements.
SS304 buttweld pipe fittings provide excellent general-purpose corrosion resistance in water, mild chemicals and atmospheric conditions, along with good formability and weldability. These fittings are widely used in process water systems, cooling lines, structural spools, food and beverage plants and many general engineering applications.
SS304L buttweld pipe fittings are produced with a lower maximum carbon content, which improves resistance to intergranular corrosion after welding. This makes 304L fittings ideal for heavily welded systems such as pressure vessels, heat exchanger manifolds and complex spools where post-weld heat treatment may not be practical.
SS304H buttweld pipe fittings are manufactured with a higher carbon content and special heat treatment to provide better creep strength at elevated temperatures. These fittings are specified for certain boiler and heater lines, high-temperature steam systems and refinery services where long-term strength at temperature is important.
By stocking and manufacturing all three grades, Petrofit enables designers to select the exact combination of corrosion resistance, weldability and high-temperature performance required, while still maintaining compatibility across the 304 family. For mixed stainless systems where some lines see higher temperatures, many customers also review our ASTM A403 SS310 / SS310S Buttweld Pipe Fittings. When more aggressive media or higher chloride levels are involved, it is common to upgrade selected circuits to ASTM A403 SS316 / SS316L / SS316H Buttweld Pipe Fittings while keeping 304-series fittings in less severe services.
Our SS304 buttweld pipe fittings, SS304L buttweld pipe fittings and SS304H buttweld pipe fittings are produced to the following key specifications.
| Item | Details |
|---|---|
| Material standard | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 and relevant BS / EN standards |
| Types | Seamless, ERW, welded and fabricated buttweld fittings |
| Forms | Elbows, tees, reducers, caps, stub ends and special fittings as per drawings |
| Item | Details |
|---|---|
| Seamless BW fittings | ½" NB to 10" NB |
| Welded BW fittings | ½" NB to 48" NB |
| Thickness / schedule | SCH 10, 20, 30, STD, SCH 40, 60, XS, SCH 80, 100, 120, 140, 160, XXS (including NACE-compliant options) |
| Bending radius | R = 1D, 2D, 3D, 5D, 6D, 8D, 10D or custom radii as per project drawings |
When corrosion conditions are moderate and cleanliness is important, SS304 buttweld pipe fittings are a practical choice for process water lines, cooling water systems, general utility piping and non-critical chemical services. They are commonly used for equipment connections, manifolds and structural spools where standard 18-8 stainless steel performance is sufficient.
Where extensive welding is involved, SS304L buttweld pipe fittings are preferred because the lower carbon level minimises the risk of intergranular corrosion in the heat-affected zone. This makes 304L a better option for welded headers, nozzle connections, tank outlets and complex spools that cannot be post-weld heat-treated.
For systems operating at higher temperatures, such as certain steam lines, heater coils and refinery services, SS304H buttweld pipe fittings provide improved creep strength and are specified when design codes require H-grade material.
Selecting SS304 buttweld pipe fittings, SS304L buttweld pipe fittings and SS304H buttweld pipe fittings gives you a flexible material family that covers most non-chloride stainless applications. All three grades offer good resistance to atmospheric and many process environments, are easy to weld with standard procedures and are well-supported in international codes and standards.
From a project perspective, using the 304 series allows you to standardise dimensions and end preparations across your system while fine-tuning only the carbon level to suit each service.
| Standard / Specification | 304 | 304L | 304H |
|---|---|---|---|
| ASTM / ASME | ASTM A403 WP304 | ASTM A403 WP304L | ASTM A403 WP304H |
| UNS | S30400 | S30403 | S30409 |
| EN / WNR | 1.4301 | 1.4307 | 1.4948 |
| JIS | SUS304 | SUS304L | SUS304H |
| DIN | X5CrNi18-10 | X2CrNi18-9 | X6CrNi18-11 |
Many projects that use 304-series fittings also require higher-alloy stainless, duplex, carbon steel or nickel alloy grades in other lines. You can learn more about our other buttweld fittings here:
End-users across several sectors specify SS304 buttweld pipe fittings, SS304L buttweld pipe fittings and SS304H buttweld pipe fittings when they need stainless performance without the cost of higher-alloy grades. Refineries, petrochemical plants, power plants, food & beverage, dairy, pharmaceutical and fabrication shops commonly use these fittings.
From India, Petrofit Alloys supplies ASTM A403 SS304 / SS304L / SS304H buttweld pipe fittings to customers worldwide.
Our export markets include:
Choosing Petrofit means partnering with a supplier that understands both technical and logistical aspects of SS304 buttweld pipe fittings, SS304L buttweld pipe fittings and SS304H buttweld pipe fittings. We maintain inventories of commonly used sizes and schedules, while also having the capability to manufacture non-standard dimensions and special fittings based on customer drawings.
Petrofit offers:
A: 304 is the standard 18-8 stainless; 304L has lower carbon for better weldability and reduced sensitisation, while 304H has higher carbon and is used where higher-temperature creep strength is required.
A: Use SS304L buttweld pipe fittings when the system involves extensive welding, thicker sections or limited post-weld heat treatment, especially for pressure-retaining components.
A: In natural seawater, 304/304L are generally not recommended due to pitting risk; duplex stainless, 316, super austenitic or nickel alloys are usually better choices.
A: Yes. SS304H buttweld pipe fittings are specifically intended for elevated-temperature service where codes require H-grade material with improved creep strength.
A: When supplied to ASTM A403 / ASME SA403 and the relevant EN/ASTM requirements, they can be used in B31.3 and PED systems, subject to project design and approval.
A: Share grade, size, schedule, type of fitting (elbow, tee, reducer, cap, stub end), quantity and any special testing or certification requirements.
If you are looking for ASTM A403 SS304 / SS304L / SS304H buttweld pipe fittings manufacturers in India, Petrofit Alloys & Engineering LLP can support your requirement. Send us your material specification, size range, schedule, fitting types and quantities, along with any special testing or certification requirements.
Our technical and sales teams will review your enquiry and respond with a technically compliant, commercially competitive quotation.
